Rohraufweiter 800 Serie
Price on request
Versandfertig in: ca. 20 Tagen
Lieferzeit: 21–23 Werktage (DE – Ausland abweichend)
Couldn't load pickup availability
Bereits über 500+ Kunden setzen bereits auf unsere Produkte
Do you need advice?
Contact us!
Product description
Product description

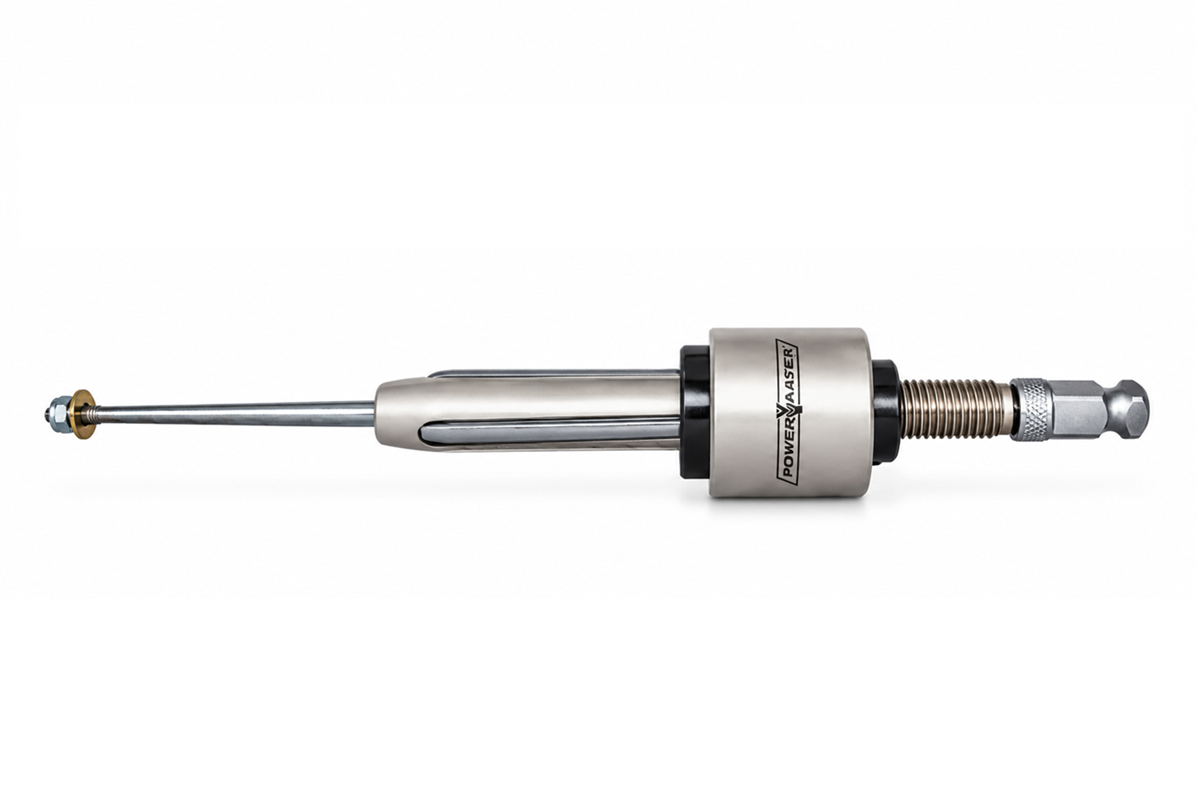

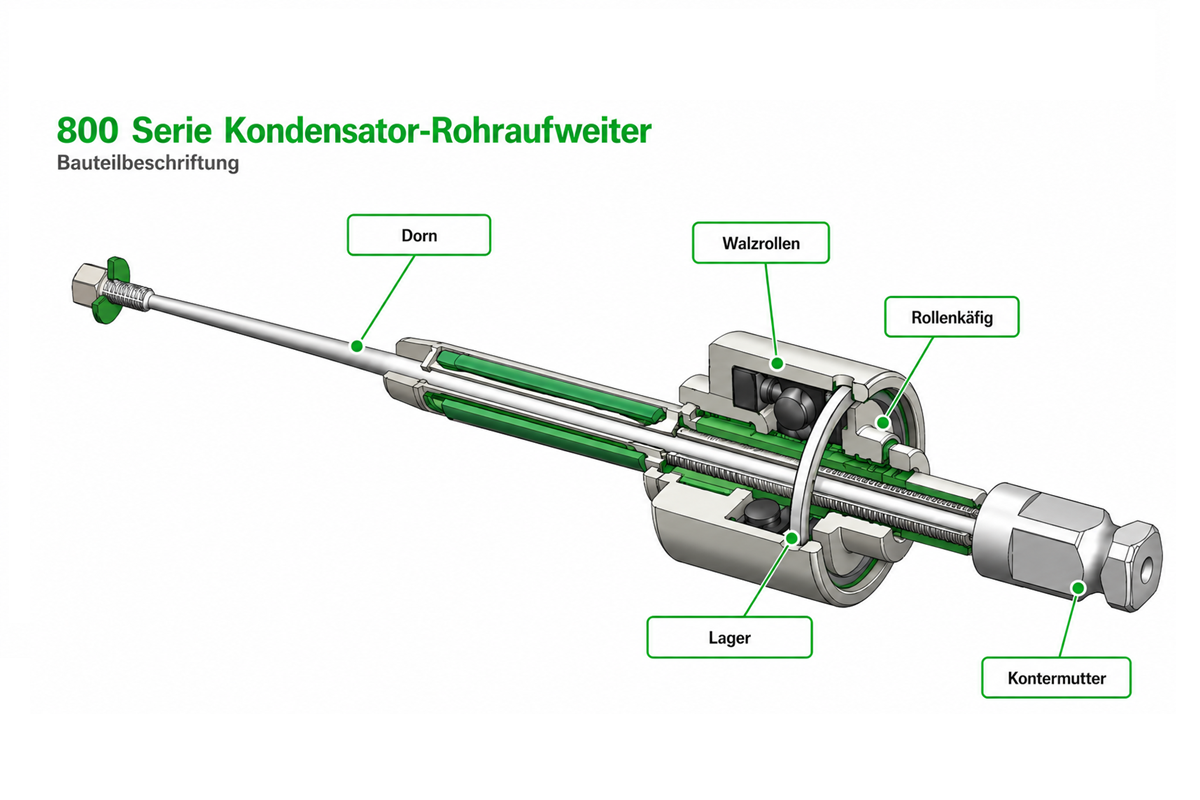

800 Serie Rohraufweiter für Wärmetauscher und Kondensatoren
Die 800 Serie ist eine vielseitige Rohraufweiter-Serie für Rohr-Außendurchmesser von 1/2" bis 1.1/2". Sie wird weltweit häufig bei Wärmetauschern, Kondensatoren, Kühlern und industriellen Apparaten eingesetzt.
Die Serie deckt Rohrinnendurchmesser von 8,4 mm bis 36,3 mm ab. Je nach Ausführung stehen Rohraufweiter mit 38,10 mm langen Rollen oder 57,15 mm langen Rollen zur Verfügung.
Rohr-O.D. 1/2" bis 1.1/2" Rohr-I.D. 8,4–36,3 mm für Wärmetauscher Rollenlänge 1.1/2" oder 2.1/4"
Einsatzbereich und Verstellbereich
Einsatz: Rohraufweitung an Wärmetauschern, Kondensatoren, Kühlern und Apparaten mit Rohr-Außendurchmessern von 1/2" bis 1.1/2".
- für Rohrinnendurchmesser von 8,4 mm (.334") bis 36,3 mm (1.43")
- für Rohre mit 1/2" bis 1.1/2" Außendurchmesser
- häufig eingesetztes Standardwerkzeug für Wärmetauscher und Kondensatoren
- Verstellbereich A bis B abhängig von der eingesetzten Rollenlänge
| Rollenlänge | Minimum A | Maximum B |
|---|---|---|
| 38,10 mm 1.1/2" |
12,7 mm 1/2" |
38,1 mm 1.1/2" |
| 57,15 mm 2.1/4" |
31,7 mm 1.1/4" |
57,1 mm 2.1/4" |
Technische Tabelle 800 Serie
Die Tabellen zeigen die Zuordnung nach Rohr-Außendurchmesser, Rohrwandstärke, Rohrinnendurchmesser, Mindest-I.D., maximaler Werkzeugaufweitung sowie Werkzeug-, Mandrel- und Rollensatznummern.
800 Serie Tabelle Teil 1 – 1/2" bis 7/8" Rohr-Außendurchmesser
| Rohr O.D. | BWG | Rohrwand | Rohr I.D. | Min. I.D. Werkzeug tritt ein |
Max. Aufweitung | Expander 38,10 mm 1.1/2" lange Rollen |
Expander 57,15 mm 2.1/4" lange Rollen |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Tool-Nr. | Mandrel | Rollen | Tool-Nr. | Mandrel | Rollen | ||
| 1/2 (12,70 mm) | 14 | 2,10 | .083 | 8,4 | .334 | 8,2 | .324 | 9,5 | .374 | 797 | 797 | 797 | - | - | - |
| 15 | 1,82 | .072 | 9,0 | .356 | 8,8 | .348 | 10,1 | .398 | 799 | 799 | R-1 | - | - | - | |
| 16 | 1,65 | .065 | 9,4 | .370 | 9,1 | .360 | 10,4 | .410 | 801 | M-1 | R-1 | - | - | - | |
| 17 | 1,47 | .058 | 9,7 | .384 | 9,5 | .374 | 10,7 | .424 | 803 | M-1 | R-2 | - | - | - | |
| 18 | 1,24 | .049 | 10,2 | .402 | 9,9 | .392 | 11,3 | .447 | 805 | M-2 | R-3 | - | - | - | |
| 20 | 0,88 | .035 | 10,9 | .430 | 10,3 | .406 | 11,7 | .461 | 805 | M-3 | R-3 | - | - | - | |
| 5/8 (15,88 mm) | 12 | 2,76 | .109 | 10,3 | .407 | 9,9 | .392 | 11,3 | .447 | 805 | M-2 | R-3 | - | - | - |
| 13 | 2,41 | .095 | 11,0 | .435 | 10,8 | .425 | 12,1 | .480 | 807 | M-3 | R-4 | - | - | - | |
| 14 | 2,10 | .083 | 11,6 | .459 | 11,4 | .449 | 12,9 | .509 | 809 | M-4 | R-4 | 810 | M-4 | R-4-A | |
| 15 | 1,82 | .072 | 12,2 | .481 | 11,9 | .471 | 13,6 | .536 | 811 | M-5 | R-5 | 812 | M-5 | R-5-A | |
| 16 | 1,65 | .065 | 12,5 | .495 | 12,3 | .485 | 13,9 | .550 | 813 | M-5 | R-6 | 814 | M-5 | R-6-A | |
| 17 | 1,47 | .058 | 12,9 | .509 | 12,6 | .499 | 14,3 | .564 | 815 | M-6 | R-6 | 816 | M-6 | R-6-A | |
| 18 | 1,24 | .049 | 13,3 | .527 | 13,1 | .517 | 14,5 | .572 | 817 | M-7 | R-7 | 818 | M-7 | R-7-A | |
| 19 | 1,06 | .042 | 13,7 | .541 | 13,2 | .522 | 14,7 | .582 | 819 | M-6 | R-7 | 820 | M-6 | R-7-A | |
| 20 | 0,88 | .035 | 14,1 | .555 | 13,6 | .536 | 15,1 | .596 | 819S | M-8 | R-7 | 820S | M-8 | R-7-A | |
| 21 | 0,81 | .032 | 14,2 | .561 | 13,6 | .536 | 15,1 | .596 | 819S | M-8 | R-7 | 820S | M-8 | R-7-A | |
| 22 | 0,71 | .028 | 14,4 | .569 | 13,6 | .536 | 15,1 | .596 | 819S | M-8 | R-7 | 820S | M-8 | R-7-A | |
| 3/4 (19,05 mm) | 10 | 3,40 | .134 | 12,2 | .482 | 11,9 | .471 | 13,6 | .536 | 811 | M-5 | R-5 | 812 | M-5 | R-5-A |
| 11 | 3,04 | .120 | 12,9 | .510 | 12,6 | .499 | 14,3 | .564 | 815 | M-6 | R-6 | 816 | M-6 | R-6-A | |
| 12 | 2,76 | .109 | 13,5 | .532 | 13,2 | .522 | 14,7 | .582 | 819 | M-6 | R-7 | 820 | M-6 | R-7-A | |
| 13 | 2,41 | .095 | 14,2 | .560 | 13,9 | .550 | 15,6 | .615 | 821 | M-8 | R-8 | 822 | M-8 | R-8-A | |
| 14 | 2,10 | .083 | 14,8 | .584 | 14,5 | .574 | 16,2 | .639 | 823 | M-8 | R-9 | 824 | M-8 | R-9-A | |
| 15 | 1,82 | .072 | 15,3 | .606 | 15,1 | .596 | 16,7 | .661 | 825 | M-8 | R-10 | 826 | M-8 | R-10-A | |
| 16 | 1,65 | .065 | 15,7 | .620 | 15,3 | .605 | 17,4 | .685 | 827 | M-9 | R-10 | 828 | M-9 | R-10-A | |
| 17 | 1,47 | .058 | 16,1 | .634 | 15,7 | .619 | 17,7 | .699 | 829 | M-9 | R-11 | 830 | M-9 | R-11-A | |
| 18 | 1,24 | .049 | 16,5 | .652 | 15,7 | .619 | 17,7 | .699 | 829 | M-9 | R-11 | 830 | M-9 | R-11-A | |
| 19 | 1,06 | .042 | 16,9 | .666 | 16,3 | .642 | 18,3 | .722 | 831 | M-9 | R-12 | 832 | M-9 | R-12-A | |
| 20 | 0,88 | .035 | 17,2 | .680 | 16,3 | .642 | 18,3 | .722 | 831 | M-9 | R-12 | 832 | M-9 | R-12-A | |
| 21 | 0,81 | .032 | 17,4 | .686 | 16,3 | .642 | 18,3 | .722 | 831 | M-9 | R-12 | 832 | M-9 | R-12-A | |
| 22 | 0,71 | .028 | 17,6 | .694 | 16,3 | .642 | 18,3 | .722 | 831 | M-9 | R-12 | 832 | M-9 | R-12-A | |
| 7/8 (22,22 mm) | 10 | 3,40 | .134 | 15,4 | .607 | 15,1 | .596 | 16,7 | .661 | 825 | M-8 | R-10 | 826 | M-8 | R-10-A |
| 11 | 3,04 | .120 | 16,1 | .635 | 15,7 | .619 | 17,7 | .699 | 829 | M-9 | R-11 | 830 | M-9 | R-11-A | |
| 12 | 2,76 | .109 | 16,6 | .657 | 16,3 | .642 | 18,3 | .722 | 831 | M-9 | R-12 | 832 | M-9 | R-12-A | |
| 13 | 2,41 | .095 | 17,4 | .685 | 17,0 | .670 | 19,0 | .750 | 833 | M-10 | R-13 | 834 | M-10 | R-13-A | |
| 14 | 2,10 | .083 | 18,0 | .709 | 17,4 | .685 | 19,6 | .774 | 835 | M-11 | R-14 | 836 | M-11 | R-14-A | |
| 15 | 1,82 | .072 | 18,5 | .731 | 18,0 | .712 | 20,3 | .801 | 837 | M-11 | R-15 | 838 | M-11 | R-15-A | |
| 16 | 1,65 | .065 | 18,9 | .745 | 18,4 | .726 | 20,7 | .815 | 839 | M-12 | R-15 | 840 | M-12 | R-15-A | |
| 17 | 1,47 | .058 | 19,2 | .759 | 18,8 | .740 | 21,0 | .829 | 843 | M-12 | R-16 | 844 | M-12 | R-16-A | |
| 18 | 1,24 | .049 | 19,7 | .777 | 18,8 | .740 | 21,0 | .829 | 843 | M-12 | R-16 | 844 | M-12 | R-16-A | |
800 Serie Tabelle Teil 2 – 1" bis 1.1/2" Rohr-Außendurchmesser
| Rohr O.D. | BWG | Rohrwand | Rohr I.D. | Min. I.D. Werkzeug tritt ein |
Max. Aufweitung | Expander 38,10 mm 1.1/2" lange Rollen |
Expander 57,15 mm 2.1/4" lange Rollen |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Tool-Nr. | Mandrel | Rollen | Tool-Nr. | Mandrel | Rollen | ||
| 1 (25,40 mm) | 8 | 4,19 | .165 | 17,0 | .670 | 16,6 | .655 | 18,6 | .735 | 841 | M-9 | R-13 | 842 | M-9 | R-13-A |
| 9 | 3,75 | .148 | 17,8 | .704 | 17,4 | .685 | 19,6 | .774 | 835 | M-11 | R-14 | 836 | M-11 | R-14-A | |
| 10 | 3,40 | .134 | 18,5 | .732 | 18,0 | .712 | 20,3 | .801 | 837 | M-11 | R-15 | 838 | M-11 | R-15-A | |
| 11 | 3,04 | .120 | 19,3 | .760 | 18,8 | .740 | 21,0 | .829 | 843 | M-12 | R-16 | 844 | M-12 | R-16-A | |
| 12 | 2,76 | .109 | 19,8 | .782 | 19,3 | .763 | 21,6 | .852 | 845 | M-12 | R-17 | 846 | M-12 | R-17-A | |
| 13 | 2,41 | .095 | 20,5 | .810 | 20,0 | .791 | 22,3 | .880 | 847 | M-13 | R-18 | 848 | M-13 | R-18-A | |
| 14 | 2,10 | .083 | 21,1 | .834 | 20,5 | .810 | 23,0 | .909 | 849 | M-13 | R-18 | 850 | M-13 | R-18-A | |
| 15 | 1,82 | .072 | 21,7 | .856 | 21,2 | .837 | 23,7 | .936 | 851 | M-13 | R-19 | 852 | M-13 | R-19-A | |
| 16 | 1,65 | .065 | 22,1 | .870 | 21,2 | .837 | 23,7 | .936 | 851 | M-13 | R-19 | 852 | M-13 | R-19-A | |
| 17 | 1,47 | .058 | 22,4 | .884 | 21,9 | .865 | 24,4 | .964 | 855 | M-13 | R-21 | 856 | M-13 | R-21-A | |
| 18 | 1,24 | .049 | 22,9 | .902 | 21,9 | .865 | 24,4 | .964 | 855 | M-13 | R-21 | 856 | M-13 | R-21-A | |
| 19 | 1,06 | .042 | 23,2 | .916 | 21,9 | .865 | 24,4 | .964 | 855 | M-13 | R-21 | 856 | M-13 | R-21-A | |
| 20 | 0,88 | .035 | 23,6 | .930 | 21,9 | .865 | 24,4 | .964 | 855 | M-13 | R-21 | 856 | M-13 | R-21-A | |
| 1.1/8 (28,58 mm) | 8 | 4,19 | .165 | 20,1 | .795 | 19,7 | .776 | 22,2 | .875 | 853 | M-14 | R-20 | 854 | M-14 | R-20-A |
| 9 | 3,75 | .148 | 21,0 | .829 | 20,5 | .810 | 23,0 | .909 | 849 | M-13 | R-18 | 850 | M-13 | R-18-A | |
| 10 | 3,40 | .134 | 21,7 | .857 | 21,2 | .837 | 23,7 | .936 | 851 | M-13 | R-19 | 852 | M-13 | R-19-A | |
| 11 | 3,04 | .120 | 22,4 | .885 | 21,9 | .865 | 24,4 | .964 | 855 | M-13 | R-21 | 856 | M-13 | R-21-A | |
| 12 | 2,76 | .109 | 23,0 | .907 | 22,4 | .883 | 24,9 | .982 | 857 | M-14 | R-21 | 858 | M-14 | R-21-A | |
| 13 | 2,41 | .095 | 23,7 | .935 | 23,2 | .916 | 25,7 | 1.015 | 859 | M-14 | R-22 | 860 | M-14 | R-22-A | |
| 14 | 2,10 | .083 | 24,3 | .959 | 23,7 | .935 | 26,5 | 1.044 | 861 | M-15 | R-23 | 862 | M-15 | R-23-A | |
| 15 | 1,82 | .072 | 24,9 | .981 | 24,4 | .962 | 27,2 | 1.071 | 863 | M-15 | R-24 | 864 | M-15 | R-24-A | |
| 16 | 1,65 | .065 | 25,2 | .995 | 24,4 | .962 | 27,2 | 1.071 | 863 | M-15 | R-24 | 864 | M-15 | R-24-A | |
| 17 | 1,47 | .058 | 25,6 | 1.010 | 25,1 | .990 | 27,9 | 1.099 | 867 | M-16 | R-26 | 868 | M-16 | R-26-A | |
| 18 | 1,24 | .049 | 26,0 | 1.027 | 25,1 | .990 | 27,9 | 1.099 | 867 | M-16 | R-26 | 868 | M-16 | R-26-A | |
| 1.1/4 (31,75 mm) | 8 | 4,19 | .165 | 23,3 | .920 | 22,8 | .901 | 25,6 | 1.010 | 865 | M-15 | R-25 | 866 | M-15 | R-25-A |
| 9 | 3,75 | .148 | 24,2 | .954 | 23,7 | .935 | 26,5 | 1.044 | 861 | M-15 | R-23 | 862 | M-15 | R-23-A | |
| 10 | 3,40 | .134 | 24,9 | .982 | 24,4 | .962 | 27,2 | 1.071 | 863 | M-15 | R-24 | 864 | M-15 | R-24-A | |
| 11 | 3,04 | .120 | 25,6 | 1.010 | 25,1 | .990 | 27,9 | 1.099 | 867 | M-16 | R-26 | 868 | M-16 | R-26-A | |
| 12 | 2,76 | .109 | 26,2 | 1.032 | 25,7 | 1.013 | 28,5 | 1.122 | 869 | M-16 | R-27 | 870 | M-16 | R-27-A | |
| 13 | 2,41 | .095 | 26,9 | 1.060 | 26,4 | 1.039 | 29,2 | 1.150 | 871 | M-17 | R-28 | 872 | M-17 | R-28-A | |
| 14 | 2,10 | .083 | 27,5 | 1.084 | 26,9 | 1.060 | 29,6 | 1.169 | 873 | M-17 | R-29 | 874 | M-17 | R-29-A | |
| 15 | 1,82 | .072 | 28,0 | 1.106 | 27,6 | 1.087 | 30,3 | 1.196 | 875 | M-17 | R-30 | 876 | M-17 | R-30-A | |
| 16 | 1,65 | .065 | 28,4 | 1.120 | 27,6 | 1.087 | 30,3 | 1.196 | 875 | M-17 | R-30 | 876 | M-17 | R-30-A | |
| 17 | 1,47 | .058 | 28,8 | 1.134 | 28,3 | 1.115 | 31,0 | 1.224 | 879 | M-18 | R-30 | 880 | M-18 | R-30-A | |
| 18 | 1,24 | .049 | 29,2 | 1.152 | 28,3 | 1.115 | 31,0 | 1.224 | 879 | M-18 | R-30 | 880 | M-18 | R-30-A | |
| 1.3/8 (34,92 mm) | 8 | 4,19 | .165 | 26,5 | 1.045 | 26,0 | 1.026 | 28,8 | 1.135 | 877 | M-17 | R-31 | 878 | M-17 | R-31-A |
| 9 | 3,75 | .148 | 27,4 | 1.079 | 26,9 | 1.060 | 29,6 | 1.169 | 873 | M-17 | R-29 | 874 | M-17 | R-29-A | |
| 10 | 3,40 | .134 | 28,1 | 1.107 | 27,6 | 1.087 | 30,3 | 1.196 | 875 | M-17 | R-30 | 876 | M-17 | R-30-A | |
| 11 | 3,04 | .120 | 28,8 | 1.135 | 28,3 | 1.115 | 31,0 | 1.224 | 879 | M-18 | R-30 | 880 | M-18 | R-30-A | |
| 12 | 2,76 | .109 | 29,3 | 1.157 | 28,7 | 1.133 | 31,5 | 1.242 | 881 | M-18 | R-32 | 882 | M-18 | R-32-A | |
| 13 | 2,41 | .095 | 30,1 | 1.185 | 29,4 | 1.160 | 32,3 | 1.275 | 883 | M-19 | R-33 | 884 | M-19 | R-33-A | |
| 14 | 2,10 | .083 | 30,7 | 1.209 | 29,9 | 1.179 | 32,8 | 1.294 | 885 | M-20 | R-34 | 886 | M-20 | R-34-A | |
| 15 | 1,82 | .072 | 31,2 | 1.231 | 30,6 | 1.206 | 33,5 | 1.321 | 887 | M-20 | R-35 | 888 | M-20 | R-35-A | |
| 16 | 1,65 | .065 | 31,6 | 1.245 | 30,6 | 1.206 | 33,5 | 1.321 | 887 | M-20 | R-35 | 888 | M-20 | R-35-A | |
| 1.1/2 (38,10 mm) | 8 | 4,19 | .165 | 29,7 | 1.170 | 29,0 | 1.145 | 32,0 | 1.260 | 889 | M-19 | R-34 | 890 | M-19 | R-34-A |
| 9 | 3,75 | .148 | 30,5 | 1.204 | 29,9 | 1.177 | 32,8 | 1.294 | 885 | M-20 | R-34 | 886 | M-20 | R-34-A | |
| 10 | 3,40 | .134 | 31,2 | 1.232 | 30,6 | 1.206 | 33,5 | 1.321 | 887 | M-20 | R-35 | 888 | M-20 | R-35-A | |
| 11 | 3,04 | .120 | 32,0 | 1.260 | 31,3 | 1.233 | 34,2 | 1.350 | 891 | M-20 | R-36 | 892 | M-20 | R-36-A | |
| 12 | 2,76 | .109 | 32,5 | 1.282 | 31,9 | 1.257 | 34,8 | 1.372 | 893 | M-20 | R-37 | 894 | M-20 | R-37-A | |
| 13 | 2,41 | .095 | 33,2 | 1.310 | 32,6 | 1.285 | 35,5 | 1.400 | 895 | M-21 | R-37 | 896 | M-21 | R-37-A | |
| 14 | 2,10 | .083 | 33,8 | 1.334 | 33,2 | 1.309 | 36,1 | 1.421 | 897 | M-21 | R-38 | 898 | M-21 | R-38-A | |
| 15 | 1,82 | .072 | 34,4 | 1.356 | 33,8 | 1.331 | 36,7 | 1.446 | 897 | M-21 | R-38 | 898 | M-21 | R-38-A | |
| 16 | 1,65 | .065 | 34,8 | 1.370 | 33,8 | 1.331 | 36,7 | 1.446 | 897 | M-21 | R-38 | 898 | M-21 | R-38-A | |
| 17 | 1,47 | .058 | 35,1 | 1.384 | 33,8 | 1.331 | 37,3 | 1.472 | 899 | M-22 | R-38 | 900 | M-22 | R-38-A | |
| 18 | 1,24 | .049 | 35,6 | 1.402 | 33,8 | 1.331 | 37,3 | 1.472 | 899 | M-22 | R-38 | 900 | M-22 | R-38-A | |
| 19 | 1,06 | .042 | 35,9 | 1.416 | 33,8 | 1.331 | 37,3 | 1.472 | 899 | M-22 | R-38 | 900 | M-22 | R-38-A | |
| 20 | 0,88 | .035 | 36,3 | 1.430 | 33,8 | 1.331 | 37,3 | 1.472 | 899 | M-22 | R-38 | 900 | M-22 | R-38-A | |
Hinweis: Modelle 797–856 werden mit 3/8" Vierkant-Mandrel geliefert. Modelle 857–900 werden mit 1/2" Vierkant-Mandrel geliefert.
Kurzbeschreibung
Die 800 Serie Rohraufweiter ist eine Standardserie für Wärmetauscher, Kondensatoren und industrielle Apparate mit Rohr-Außendurchmessern von 1/2" bis 1.1/2". Sie eignet sich für kontrollierte Rohraufweitung bei Wartung, Reparatur und Fertigung.
