Boiler Tube Expander AB Series
Price on request
Versandfertig in: ca. 20 Tagen
Lieferzeit: 21–23 Werktage (DE – Ausland abweichend)
Couldn't load pickup availability
Contact us!
Product description
Product description

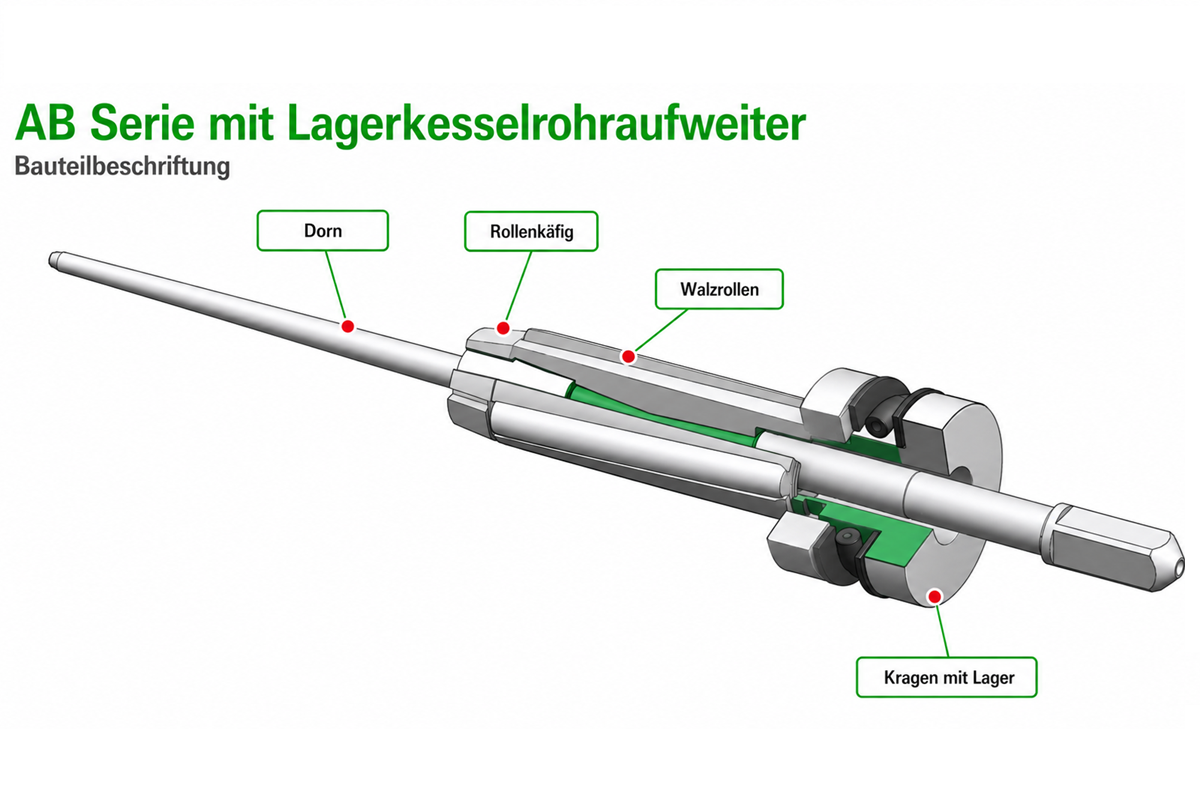

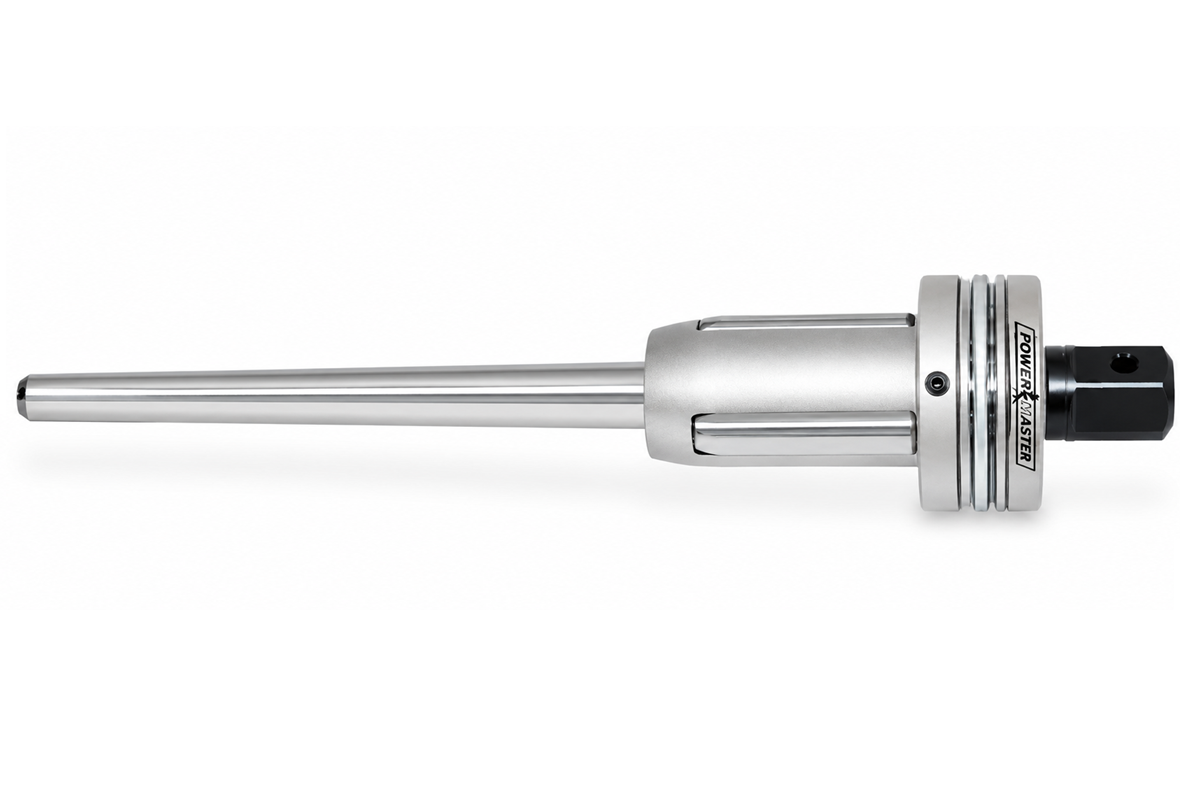

AB Series Parallel Tube Expander with Bearing
The AB Series is a bearing-mounted version of the A Series for parallel tube expanding without flaring. The integrated bearing reduces friction during the expanding process and ensures smoother, more consistent operation.
Reduced friction increases the tool's lifespan. The AB Series is particularly suitable for high-production series applications on heat exchangers, condensers, boilers, and air preheaters where a reliable and repeatable expanding process is required.
Application and Advantages
- bearing-mounted parallel tube expander for non-flaring applications
- reduced friction for smoother and more consistent expansion cycles
- longer tool life due to reduced mechanical stress
- suitable for heat exchangers, condensers, boilers, and air preheaters
- robust design with self-retained rollers in a cage
- especially suitable for high-production series and maintenance work
AB Series Selection Table
The following HTML table provides selection based on tube outer diameter, wall thickness, minimum inner diameter, maximum expansion, and tool numbers by tube sheet thickness. As this is a true HTML table, the Shopify translation app can process its contents.
| Tube 1 | Tube 2 | Min. I.D. Tool Enters |
Max. Expansion | Tool Number by Tube Sheet Thickness | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D. inch | BWG | Wall inch | O.D. inch | BWG | Wall inch | mm | inch | mm | inch | 7/8" | 1.1/8" | 1.5/8" | 2.1/8" | 2.5/8" |
| 7/8 | 15 | .072 | 1 | 10 | .134 | 18,1 | .712 | 20,4 | .803 | AB-81/2 | AB-81/3 | – | – | – |
| 7/8 | 16 | .065 | 1 | 11 | .120 | 18,4 | .724 | 20,7 | .814 | AB-83/2 | AB-83/3 | – | – | – |
| 7/8 | 17 | .058 | 1 | 11 | .120 | 18,8 | .740 | 21,1 | .830 | AB-85/2 | AB-85/3 | – | – | – |
| 7/8 | 18 | .049 | 1 | 12 | .109 | 19,4 | .763 | 21,6 | .850 | AB-87/2 | AB-87/3 | – | – | – |
| 7/8 | 19–20 | .042–.035 | 1.1/8 | 8 | .165 | 19,7 | .775 | 22,3 | .877 | AB-89/2 | AB-89/3 | – | – | – |
| 1 | 13 | .095 | 1.1/8 | 8 | .165 | 20,1 | .791 | 22,4 | .881 | AB-91/2 | AB-91/3 | – | – | – |
| 1 | 14 | .083 | 1.1/8 | 9 | .148 | 20,6 | .811 | 23,1 | .909 | AB-97/2 | AB-97/3 | AB-97/4 | – | – |
| 1 | 15–16 | .072–.065 | 1.1/8 | 10 | .134 | 21,3 | .838 | 23,8 | .937 | AB-99/2 | AB-99/3 | AB-99/4 | – | – |
| 1 | 17–18 | .058–.049 | 1.1/8 | 11 | .120 | 22,0 | .866 | 24,5 | .964 | AB-105/2 | AB-105/3 | AB-105/4 | – | – |
| 1 | 19–20 | .042–.035 | 1.1/8 | 12 | .109 | 22,4 | 1.000 | 25,0 | .984 | AB-101/2 | AB-101/3 | AB-101/4 | – | – |
| 1.1/4 | 8 | .165 | 1.1/8 | 13 | .095 | 23,3 | .917 | 25,9 | 1.019 | AB-111/2 | AB-111/3 | AB-111/4 | – | – |
| 1.1/4 | 10 | .134 | 1.1/8 | 14 | .083 | 23,9 | .942 | 26,5 | 1.043 | AB-113/2 | AB-113/3 | AB-113/4 | – | – |
| 1.1/4 | 10 | .134 | 1.1/8 | 15–16 | .072–.065 | 24,4 | .960 | 27,2 | 1.070 | AB-117/2 | AB-117/3 | AB-117/4 | – | – |
| 1.1/4 | 11 | .120 | 1.1/8 | 15–16 | .072–.065 | 25,2 | .992 | 28,0 | 1.102 | AB-119/2 | AB-119/3 | AB-119/4 | – | – |
| 1.1/4 | 12 | .109 | 1.1/8 | 15–16 | .072–.065 | 25,7 | 1.011 | 28,5 | 1.122 | AB-121/2 | AB-121/3 | AB-121/4 | – | – |
| 1.1/4 | 13 | .095 | 1.3/8 | 8 | .165 | 26,1 | 1.027 | 28,8 | 1.133 | AB-127/2 | AB-127/3 | AB-127/4 | – | – |
| 1.1/4 | 14 | .083 | 1.3/8 | 8 | .165 | 26,4 | 1.039 | 29,2 | 1.149 | AB-129/2 | AB-129/3 | AB-129/4 | – | – |
| 1.1/4 | 15 | .072 | 1.3/8 | 9 | .148 | 26,9 | 1.059 | 29,7 | 1.169 | AB-131/2 | AB-131/3 | AB-131/4 | – | – |
| 1.1/4 | 16 | .065 | 1.3/8 | 10 | .134 | 27,6 | 1.086 | 30,4 | 1.196 | AB-149/2 | AB-149/3 | AB-149/4 | AB-149/5 | AB-149/6 |
| 1.1/2 | 8 | .165 | 1.3/4 | 12 | .109 | 28,8 | 1.133 | 31,7 | 1.248 | AB-151/2 | AB-151/3 | AB-151/4 | AB-151/5 | AB-151/6 |
| 1.1/2 | 9 | .148 | 1.3/4 | 13–14 | .095–.083 | 29,5 | 1.161 | 33,4 | 1.314 | AB-159/2 | AB-159/3 | AB-159/4 | AB-159/5 | AB-159/6 |
| 1.1/2 | 10 | .134 | 1.3/4 | 15–16 | .072–.065 | 30,0 | 1.181 | 34,1 | 1.342 | AB-165/2 | AB-165/3 | AB-165/4 | AB-165/5 | AB-165/6 |
| 1.1/2 | 11–12 | .120–.109 | 1.3/4 | 15–16 | .072–.065 | 30,6 | 1.204 | 34,8 | 1.370 | AB-169/2 | AB-169/3 | AB-169/4 | AB-169/5 | AB-169/6 |
| 1.1/2 | 13 | .095 | 1.3/4 | 5 | .220 | 31,4 | 1.296 | 35,6 | 1.401 | AB-171/2 | AB-171/3 | AB-171/4 | AB-171/5 | AB-171/6 |
| 1.1/2 | 14–15 | .083–.072 | 1.3/4 | 6 | .203 | 32,6 | 1.283 | 36,8 | 1.448 | AB-175/2 | AB-175/3 | AB-175/4 | AB-175/5 | AB-175/6 |
| 1.1/2 | 16 | .065 | 1.3/4 | 7 | .180 | 33,4 | 1.314 | 38,1 | 1.500 | AB-177/2 | AB-177/3 | AB-177/4 | AB-177/5 | AB-177/6 |
| 1.1/2 | 17 | .058 | 1.3/4 | 8 | .165 | 34,2 | 1.346 | 38,7 | 1.523 | AB-179/2 | AB-179/3 | AB-179/4 | AB-179/5 | AB-179/6 |
| 2 | 5–6 | .220–.203 | 1.3/4 | 13–14 | .095–.083 | 38,2 | 1.503 | 43,8 | 1.712 | AB-161/2 | AB-161/3 | AB-161/4 | AB-161/5 | AB-161/6 |
| 2 | 11–13 | .120–.095 | 2.1/4 | 4 | .238 | 42,9 | 1.688 | 49,5 | 1.948 | AB-191/2 | AB-191/3 | AB-191/4 | AB-191/5 | AB-191/6 |
| 2.1/2 | 6–7 | .203–.180 | 2.1/4 | 14–16 | .083–.065 | 50,8 | 2.000 | 57,8 | 2.275 | AB-201/2 | AB-201/3 | AB-201/4 | AB-201/5 | AB-201/6 |
| 2.1/2 | 8–9 | .165–.148 | 2.3/4 | 3 | .259 | 52,4 | 2.062 | 59,4 | 2.338 | AB-701/2 | AB-701/3 | AB-701/4 | AB-701/5 | AB-701/6 |
| 2.1/2 | 10–11 | .134–.120 | 2.3/4 | 4 | .238 | 54,0 | 2.125 | 61,0 | 2.401 | A-712 | A-713 | A-714 | A-715 | A-716 |
| 2.1/2 | 12–14 | .109–.083 | 2.3/4 | 5–6 | .220–.203 | 55,6 | 2.188 | 63,0 | 2.481 | A-722 | A-723 | A-724 | A-725 | A-726 |
| 2.1/2 | 15–16 | .072–.065 | 2.3/4 | 7–8 | .180–.165 | 57,2 | 2.251 | 65,6 | 2.582 | A-732 | A-733 | A-734 | A-735 | A-736 |
| 3 | 3 | .259 | 2.3/4 | 9–10 | .148–.134 | 58,6 | 2.307 | 67,0 | 2.637 | A-742 | A-743 | A-744 | A-745 | A-746 |
| 3 | 4 | .238 | 2.3/4 | 11–13 | .120–.095 | 60,4 | 2.377 | 68,8 | 2.708 | A-752 | A-753 | A-754 | A-755 | A-756 |
| 3 | 7–8 | .180–.165 | – | – | – | 63,6 | 2.503 | 72,0 | 2.834 | A-772 | A-773 | A-774 | A-775 | A-776 |
| 3 | 11–13 | .120–.095 | 3.1/4 | 4 | .238 | 66,6 | 2.622 | 75,0 | 2.952 | A-792 | A-793 | A-794 | A-795 | A-796 |
| 3.1/2 | 2 | .284 | 3.1/4 | 7–8 | .180–.165 | 69,9 | 2.751 | 78,5 | 3.090 | A-811 | A-813 | A-814 | A-815 | A-816 |
| 3.1/2 | 4 | .238 | 3.1/4 | 11–13 | .120–.095 | 73,1 | 2.877 | 81,7 | 3.216 | A-831 | A-833 | A-834 | A-835 | A-836 |
| 3.1/2 | 5–6 | .220–.203 | 3.1/4 | 14–16 | .083–.065 | 74.6 | 2.937 | 84.2 | 3.314 | A-841 | A-843 | A-844 | A-845 | A-846 |
| 4 | 1 | .300 | 3.3/4 | 5–6 | .220–.203 | 81.0 | 3.188 | 90.6 | 3.564 | A-881 | A-883 | A-884 | A-885 | A-886 |
| 4 | 2 | .284 | 3.3/4 | 7–8 | .180–.165 | 82.6 | 3.251 | 92.2 | 3.620 | A-891 | A-893 | A-894 | A-895 | A-896 |
| 4 | 4 | .238 | 3.3/4 | 11–13 | .120–.095 | 85.8 | 3.377 | 96.2 | 3.787 | A-911 | A-913 | A-914 | A-915 | A-916 |
| 4 | 5–6 | .220–.203 | 3.3/4 | 14–16 | .083–.065 | 87.4 | 3.440 | 97.8 | 3.850 | A-921 | A-923 | A-924 | A-925 | A-926 |
| 4 | 7–8 | .180–.165 | 4.1/4 | 2 | .284 | 89.0 | 3.503 | 99.4 | 3.913 | A-931 | A-933 | A-934 | A-935 | A-936 |
| 4 | 9–11 | .148–.120 | 4.1/4 | 3 | .284 | 90.4 | 3.559 | 100.8 | 3.968 | A-941 | A-943 | A-944 | A-945 | A-946 |
| 4 | 12–16 | .109–.065 | 4.1/4 | 4 | .238 | 92.0 | 3.622 | 102.4 | 4.031 | A-951 | A-953 | A-954 | A-955 | A-956 |
| 4.1/2 | 1 | .300 | 4.1/4 | 5–6 | .220–.203 | 93.4 | 3.677 | 103.8 | 4.086 | A-961 | A-963 | A-964 | A-965 | A-966 |
| 4.1/2 | 2 | .284 | 4.1/4 | 7–8 | .180–.165 | 95.0 | 3.740 | 105.4 | 4.149 | A-971 | A-973 | A-974 | A-975 | A-976 |
| 4.1/2 | 3 | .259 | 4.1/4 | 9–11 | .148–.120 | 96.6 | 3.803 | 107.0 | 4.212 | A-981 | A-983 | A-984 | A-985 | A-986 |
| 4.1/2 | 6–7 | .203–.180 | – | – | – | 101.2 | 3.984 | 110.0 | 4.330 | A-1001 | A-1003 | A-1004 | A-1005 | A-1006 |
| 4.1/2 | 8–9 | .165–.148 | – | – | – | 102.8 | 4.047 | 111.6 | 4.393 | A-1012 | A-1013 | A-1014 | A-1015 | A-1016 |
| 4.1/2 | 10–12 | .134–.109 | – | – | – | 104.4 | 4.110 | 113.2 | 4.456 | A-1022 | A-1023 | A-1024 | A-1025 | A-1026 |
Note: The table is based on the information provided in the uploaded AB series PDF. For special dimensions or if the appropriate combination is not directly evident, please inquire with the tube outer diameter, wall thickness, and tubesheet thickness.
Spare Rolls, Mandrels and Bearing-Drums
The AB Series uses the same roll set size ranges as the A Series. However, the bearing-equipped version requires suitable DMB series bearing-drums.
We have all spare parts in stock, please contact us.
| Roll Set Range | Tubesheet Thicknesses | Square Drive | Bearing-Drum |
|---|---|---|---|
| 43-2-RS to 44-6-RS | 1/2" to 2.5/8" | 3/4" | DMB-23 |
| 43-2-RS to 46-6-RS | 1/2" to 2.5/8" | 3/4" | DMB-24 |
| 47-2-RS to 51-6-RS | 1" | 1" | DMB-25 |
| 51-2-RS to 54-6-RS | 1/2" to 2.5/8" | 1" | DMB-26 |
| 54-2-RS to 60-6-RS | 1/2" to 2.5/8" | 1" | DMB-27 |
| 59-2-RS to 63-6-RS | 1/2" to 2.5/8" | 1" | DMB-28 |
| 63-2-RS to 64-6-RS | 1/2" to 2.5/8" | 1" | DMB-29 |
| 64-2-RS to 66-6-RS | 1/2" to 2.5/8" | 1" | DMB-30 |
Note: For precise spare part assignment, please specify the tool number, tube outer diameter, tube wall thickness, and tubesheet thickness.
Brief Description
The AB Series parallel tube expanders with bearings are designed for controlled expansion of tubes without flaring. The integrated bearing reduces friction, improves operation, and extends tool life. The series is suitable for heat exchangers, condensers, boilers, and air preheaters and covers tube outer diameters from 7/8" to 4.1/2".
