Product description
Product description

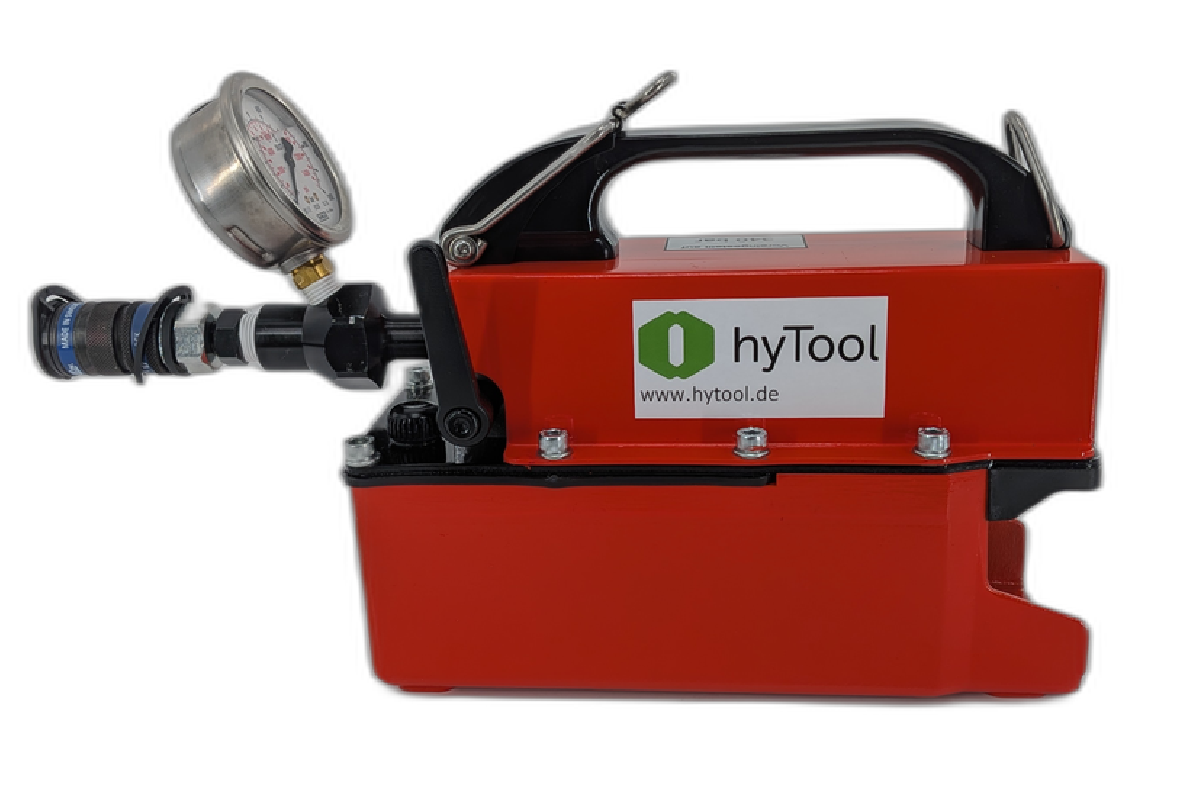

Cordless Hydraulic Pump HTBP-06700 / PYB – 700 bar
The battery-powered electric motor pump PYB is a mobile and energy-saving alternative to the hydraulic hand pump. It is suitable for independent operation of small and medium-sized single-acting hydraulic cylinders, hydraulic spreaders, lifting wedges, nut splitters, and other 700-bar hydraulic tools.
Thanks to battery operation, the pump is particularly flexible for service, assembly, and maintenance tasks. The control button is integrated into the ergonomically designed carrying handle, allowing for easy one-handed operation.
Features
- Maximum operating pressure: 700 bar
- Two-stage flow volume with automatic switching
- Fast rapid traverse for idle strokes
- Internal pressure relief valves to protect the hydraulic system
- Aluminum tank for low weight and robust design
- Rubber tank bladder – pump usable in all positions
- Tank volume can be utilized almost completely
- Protective cap against unintentional activation
- Coupling socket CFY-1 included
- Carrying strap included
Advantages in use
The two-stage flow rate enables efficient working: idle strokes are quickly overcome, and switching to the load stage occurs automatically. Due to the good suction behavior, almost the entire flow volume is displaced. This ensures high efficiency and fast extension times for the connected hydraulic equipment.
The pump can be combined with all suitable 700-bar hydraulic components, provided the oil volume matches the connected tool or cylinder.
Scope of delivery
- Electric motor pump, battery-powered
- Oil filling
- Coupling socket CFY-1
- Carrying strap
Note: Battery and charger are not included in the scope of delivery and are available as accessories.
Optional accessories
- Battery PYB-BAT, 18 V, weight 0.7 kg, Art. No. 192043950
- Fast charger PYB-CHARG, 230 V and 12 V incl. car connection, Art. No. 192043961
- Manometer set GYA-63 with manometer Ø 63 mm, 0–1,000 bar and adapter, Art. No. N14200497
- Hydraulic hose HHC, additional coupling plug CMY-1 required
Technical data
| Model | Art. No. | Flow stages | Tank volume | Flow volume 1st stage | Flow volume 2nd stage | Weight without battery | Weight with battery |
|---|---|---|---|---|---|---|---|
| PYB-0.6 | 192043421 | two-stage | 600 cm³ | 0.7 l/min | 0.06 l/min | 4.8 kg | 5.5 kg |
| PYB-1.0 | 192043988 | two-stage | 1,000 cm³ | 0.7 l/min | 0.06 l/min | 5.7 kg | 6.4 kg |
Dimensions
| Dimension | PYB-0.6 | PYB-1.0 |
|---|---|---|
| A | 245 mm | 290 mm |
| B | 100 mm | 100 mm |
| C | 120 mm | 120 mm |
| D | 200 mm | 229 mm |
| E | 148 mm | 166 mm |
| F | 88 mm | 106 mm |
Suitable Applications
Ideal for mobile hydraulic applications with compact tools such as spreading wedges, lifting wedges, short-stroke cylinders, flat cylinders, hydraulic spreaders, and nut splitters.
