CSB Series Long-Reach Tube Expanders for Sugar Mills
The CSB Series is a long-reach 5-roll tube expander for thin-walled tubes in sugar mills. It is used in juice preheaters and evaporator pans, especially for tube expansion at lower tube sheets where extended reach is required.
Application on bottom tube sheets in juice preheaters and evaporator pans.

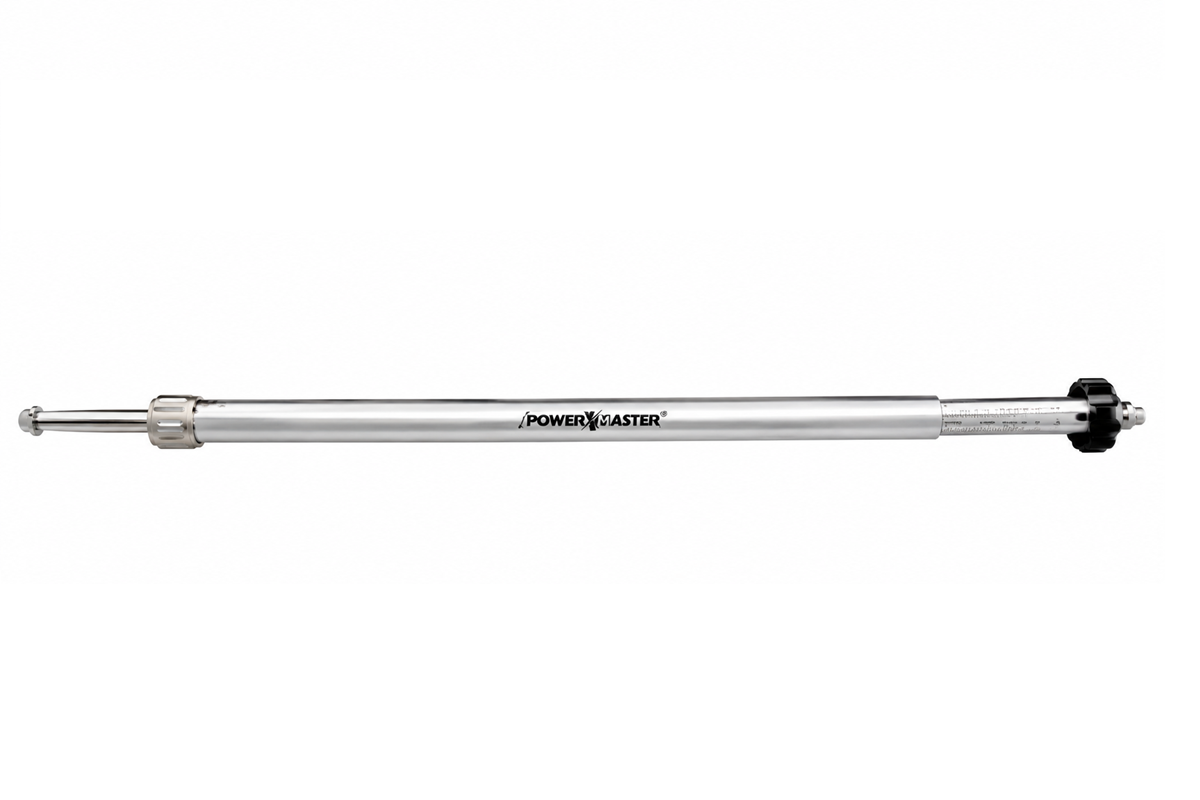

CSB Series Long-Reach 5-Roll Tube Expander.
Technical Benefits
The 5-roll design distributes the expansion force evenly around the tube circumference. This ensures concentric and uniform expansion of thin-walled tubes. Compared to 3-roll expanders, tube springback is reduced. The long-reach design facilitates work on deeper tube sheets.
Technical Data CSB Series
| Tube O.D. | Tube Thickness BWG | Tube Thickness Inch / mm | Minimum I.D. Tool Enters mm | Minimum I.D. Inch | Maximum Expansion O.D. mm | Maximum Expansion O.D. Inch | Tube Sheet Thickness mm | Tube Sheet Thickness Inch | Depth min | Depth max | Mandrel Sq. Size | OAL Mtrs. / mm | Weight kg | Tube Expander Model No. | Spare Mandrel Model No. | Spare Rollers Set No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSB-5 (6 Rolls) | ||||||||||||||||
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 1.7 | 2.0 | 3/4" 19.0 mm |
2.258 688 mm |
10.0 | CSB-5STD | CSBM-5STD | CSBR-5 |
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 2.0 | 2.3 | 3/4" 19.0 mm |
2.558 780 mm |
11.2 | CSB-5A | CSBM-5A | CSBR-5 |
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 2.3 | 2.3 | 3/4" 19.0 mm |
2.858 871 mm |
12.4 | CSB-5B | CSBM-5B | CSBR-5 |
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 2.6 | 2.9 | 3/4" 19.0 mm |
3.158 963 mm |
13.7 | CSB-5C | CSBM-5C | CSBR-5 |
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 2.9 | 3.2 | 3/4" 19.0 mm |
3.458 1054 mm |
14.9 | CSB-5D | CSBM-5D | CSBR-5 |
| 1.3/4" 44.4 mm |
15 & 16 | .072 & .065" 1.8 mm / 1.7 mm |
39.8 | 1.566" | 45.3 | 1.783" | 32.0 | 1.259" | 3.2 | 3.5 | 3/4" 19.0 mm |
3.758 1145 mm |
16.2 | CSB-5E | CSBM-5E | CSBR-5 |
| CSB-9 (5 Rolls) | ||||||||||||||||
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 1.7 | 2.0 | 3/4" 19.0 mm |
2.241 683 mm |
16.2 | CSB-9STD | CSBM-9STD | CSBR-9 |
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 2.0 | 2.3 | 3/4" 19.0 mm |
2.541 774 mm |
18.3 | CSB-9A | CSBM-9A | CSBR-9 |
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 2.3 | 2.3 | 3/4" 19.0 mm |
2.841 866 mm |
20.4 | CSB-9B | CSBM-9B | CSBR-9 |
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 2.6 | 2.9 | 3/4" 19.0 mm |
3.141 957 mm |
22.5 | CSB-9C | CSBM-9C | CSBR-9 |
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 2.9 | 3.2 | 3/4" 19.0 mm |
3.441 1049 mm |
24.6 | CSB-9D | CSBM-9D | CSBR-9 |
| 2" 50.8 mm |
14 - 16 | .083 - .065" 2.1 mm - 1.7 mm |
46.2 | 1.818" | 50.8 | 2.000" | 32.0 | 1.259" | 3.2 | 3.5 | 3/4" 19.0 mm |
3.741 1140 mm |
26.7 | CSB-9E | CSBM-9E | CSBR-9 |
| CSB-24 (5 Rolls) | ||||||||||||||||
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 0.7 | 1.0 | 1" 25.4 mm |
1.416 432 mm |
23.7 | CSB-24STD | CSBM-24STD | CSBR-24 |
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 1.0 | 1.3 | 1" 25.4 mm |
1.716 523 mm |
29.4 | CSB-24A | CSBM-24A | CSBR-24 |
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 1.3 | 1.6 | 1" 25.4 mm |
2.016 614 mm |
35.5 | CSB-24B | CSBM-24B | CSBR-24 |
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 1.6 | 1.9 | 1" 25.4 mm |
2.316 706 mm |
40.8 | CSB-24C | CSBM-24C | CSBR-24 |
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 1.9 | 2.2 | 1" 25.4 mm |
2.616 797 mm |
46.5 | CSB-24D | CSBM-24D | CSBR-24 |
| 4" 101.6 mm |
12 - 18 | .109 - .049" 2.8 mm - 1.2 mm |
90.5 | 3.563" | 102.4 | 4.031" | 32.0 | 1.259" | 2.2 | 2.5 | 1" 25.4 mm |
2.916 889 mm |
52.5 | CSB-24E | CSBM-24E | CSBR-24 |
Note: Inch specifications in the text and key table cells are additionally provided with approximate metric values. Other sizes and special lengths are available upon request as per PDF.
For which tasks is the CSB Series suitable?
The CSB Series is used when thin-walled tubes in sugar mills need to be expanded on deeper tube sheets. Typical applications include bottom plates in evaporator pans, juice preheaters, and similar apparatus where standard tube expanders do not offer sufficient reach.
