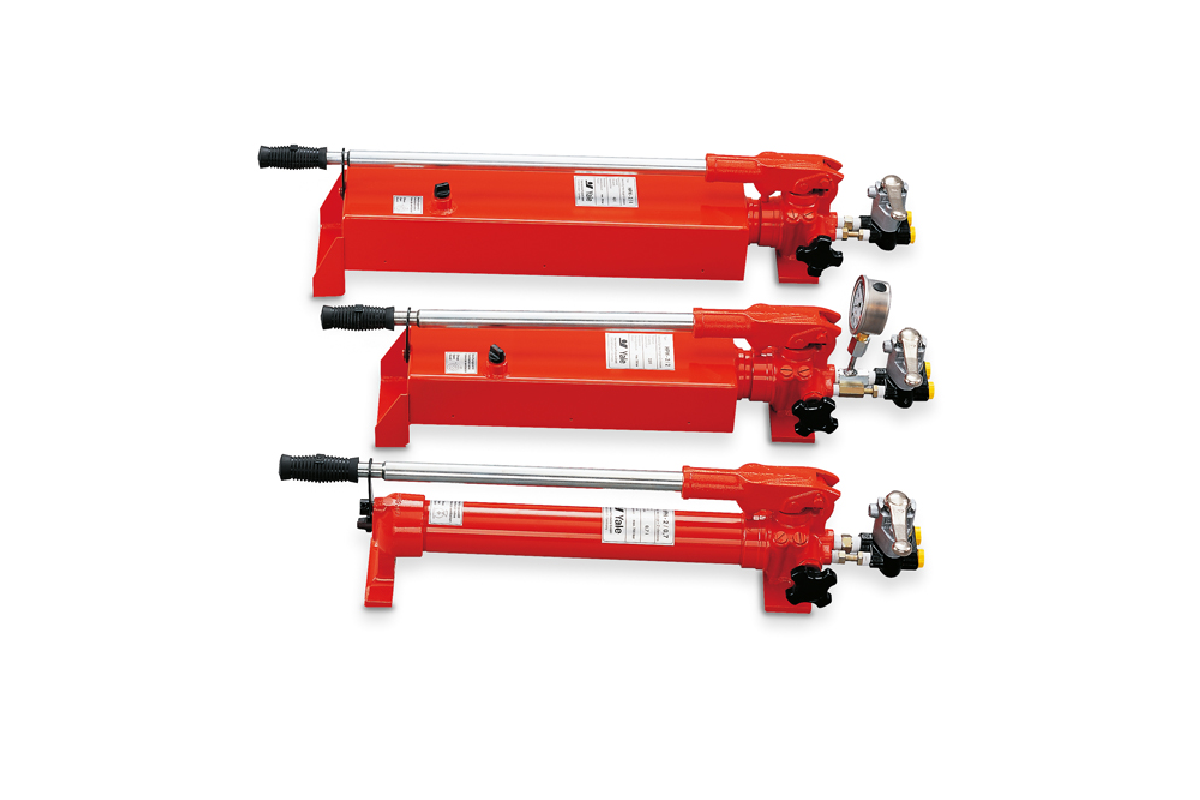

HPH
Hand pumps for double-acting cylinders
With 4-way valve and release valve (handwheel)

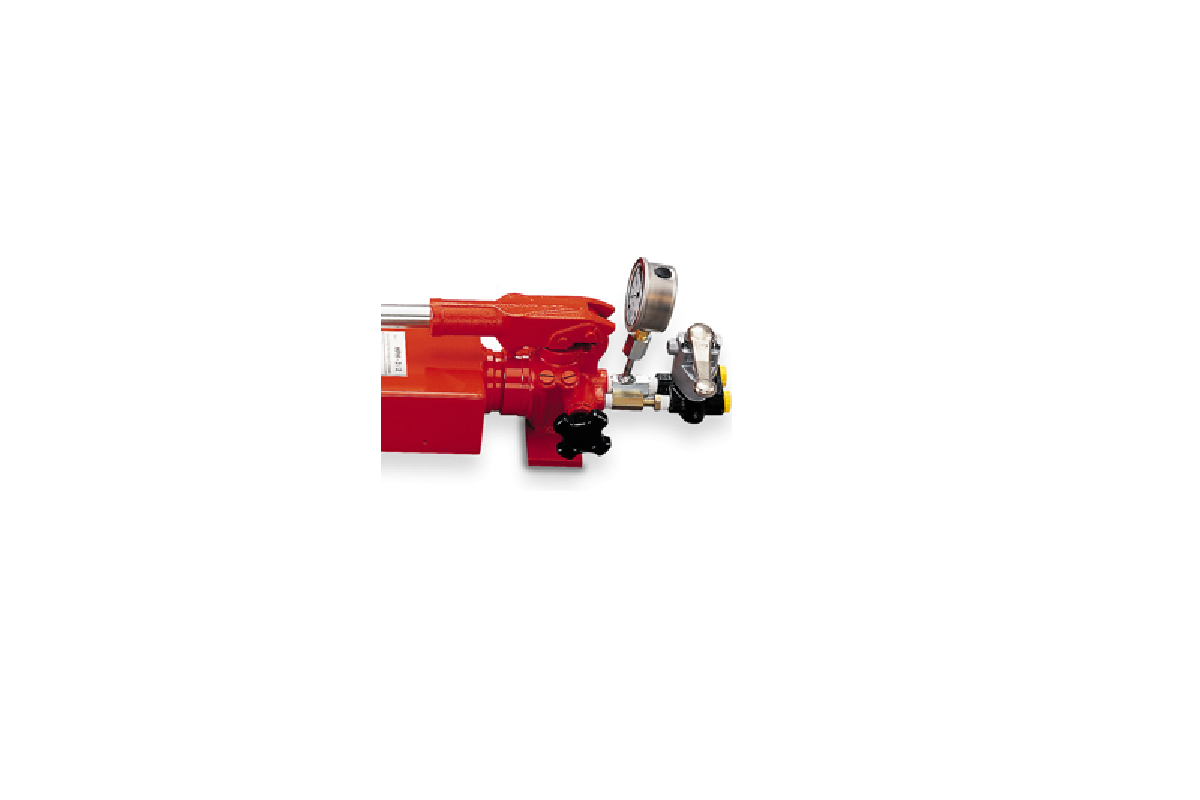

Yale HPH series hand pumps are specially designed for operating double-acting hydraulic cylinders. They are based on the robust all-metal construction of the HPS series but are additionally equipped with a 4/3-way manual valve for controlling double-acting consumers. The sensitive release valve, operated by a grippy handwheel, allows for controlled and safe pressure reduction in the system. All models operate in two stages with an automatic rapid traverse, ensuring fast and efficient workflows at a maximum operating pressure of 700 bar. The integrated oil connection thread in the standard size 3/8 NPT ensures a trouble-free and tight connection to the hydraulic components.
Optional
- Pressure gauge and suitable adapters are available as additional equipment.
|
Model |
Part No. |
Flow stages |
Tank volume cm³ |
Flow volume 1st stage cm³ |
Flow volume 2nd stage cm³ |
Weight kg |
|
HPH-2/0,7 A |
N12101018 |
two-stage |
700 |
11 |
2 |
8 |
|
HPH-2/2 A |
N12101019 |
two-stage |
2.000 |
11 |
2 |
11 |
|
HPH-2/4 A |
N12101020 |
two-stage |
4.000 |
11 |
2 |
14 |
|
HPH-2/6 A |
N12101021 |
two-stage |
6.000 |
11 |
2 |
22 |
|
HPH-2/10 A |
N12101022 |
two-stage |
10,000 |
11 |
2 |
28 |
Dimensions HPH
|
Model |
HPH-2/0.7 A |
HPH-2/2 A |
HPH-2/4 A |
HPH-2/6 A |
HPH-2/10 A |
|
A, mm |
505 |
520 |
645 |
645 |
800 |
|
B, mm |
85 |
70 |
65 |
65 |
65 |
|
C, mm |
160 |
160 |
160 |
200 |
160 |
|
D, mm |
150 |
150 |
150 |
180 |
190 |
|
E, mm |
43 |
43 |
43 |
43 |
43 |
|
F, mm |
52 |
25 |
52 |
52 |
52 |
|
G, mm |
85 |
85 |
85 |
85 |
85 |
