Internal Casing Cutter ICC for industrial pipe severing
The Internal Casing Cutter, or ICC for short, is used here as an internal pipe cutter. The tool severs pipes, pipelines and cylindrical components from the inside. The cutting arms or cutting blades extend radially outwards and cut controllably through the pipe wall. This makes the internal pipe cutter suitable for industrial applications where access from the outside is restricted or an internal cut is required.

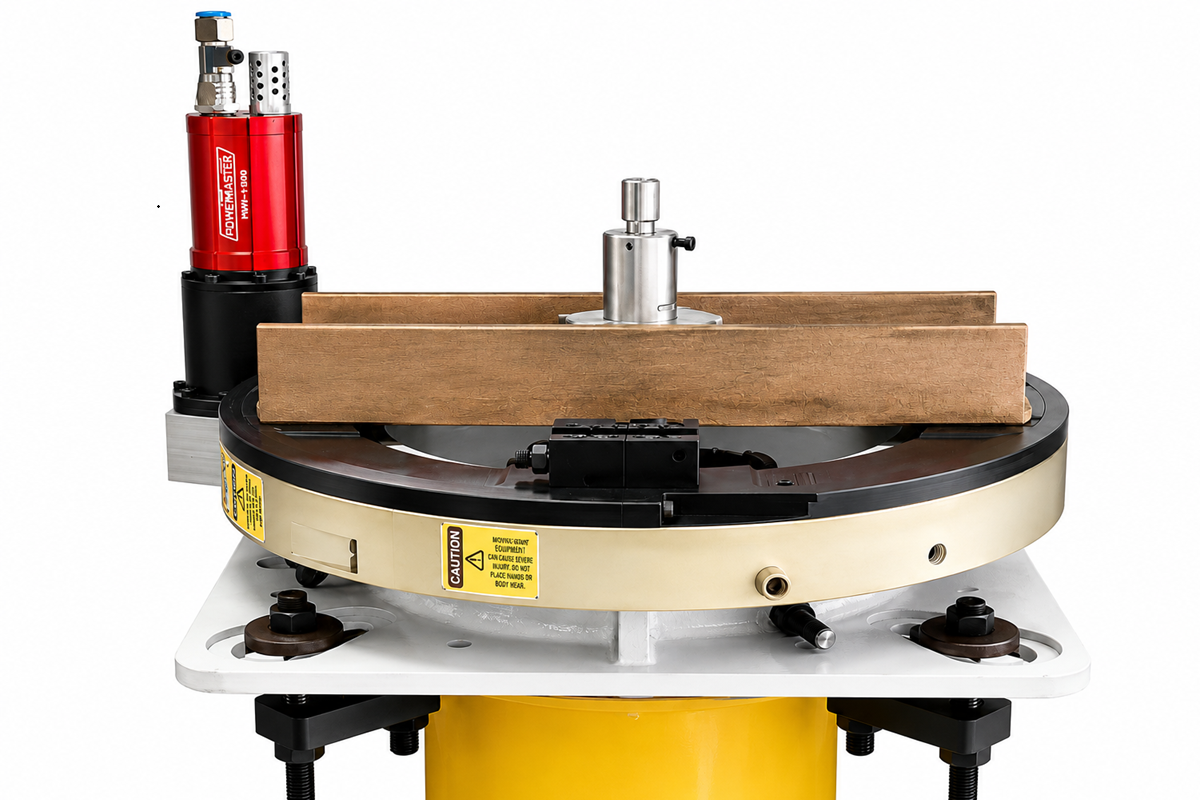

ICC attachment, mounting on split frame and setup with adapter.
Technical benefits
The internal pipe cutter enables controlled cuts from the inside out. This is particularly helpful when a pipeline, casing pipe or cylindrical structure is accessible from the inside, but there is not enough space on the outside for an externally clamped cutting system. The radial feed allows the cut to be made reproducibly and concentrically.
Technical data Internal Casing Cutter ICC
| Specification | Unit | CCI-0713 | CCI-1120 |
|---|---|---|---|
| Pipe size covered | inch / mm | 6.5/8"–13.3/8" 168.3–339.7 mm |
10.3/4"–20" 273.1–508.0 mm |
| Standard tool holder range | inch / mm | 6.5/8"–9.5/8" 168.3–244.5 mm |
10.3/4"–13.3/8" 273.1–339.7 mm |
| Extended tool holder range | inch / mm | 10.3/4"–13.3/8" 273.1–339.7 mm |
16"–20" 406.4–508.0 mm |
| Tool holder stroke | inch / mm | 1" 25.4 mm |
1" 25.4 mm |
| Radial feed per revolution | inch / mm | 0.0029" 0.075 mm |
0.0029" 0.075 mm |
| Pneumatic drive power | hp / kW | 3.5 approx. 2.6 kW |
3.5 approx. 2.6 kW |
| Cutting attachment weight | kg | 72 | 82 |
| Adapter model | Model | CCA-0713U | CCA-1620U |
| Adapter weight | kg | 42 | 64 |
Note: Inch dimensions are additionally provided with metric values. The standard and extended tool holder ranges indicate which pipe ranges are covered by the respective tool holder.
What types of work is the ICC suitable for?
The ICC internal pipe cutter is used when pipes, casing pipes or other cylindrical structures need to be severed from the inside. Typical applications include industrial maintenance, plant construction, pipeline construction, power plant service, chemical and petrochemical plants, shipbuilding, decommissioning and service work on large pipes with limited external access.
