Hydraulic lifting wedge 16 t

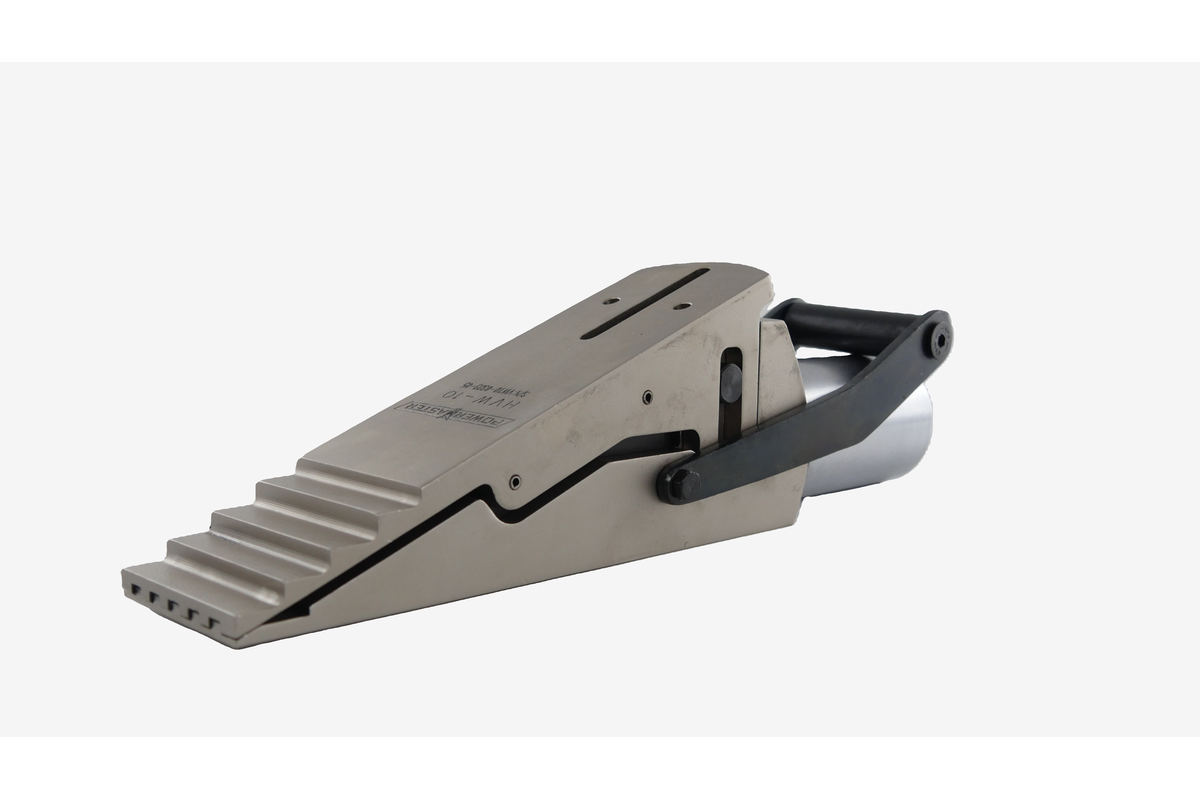

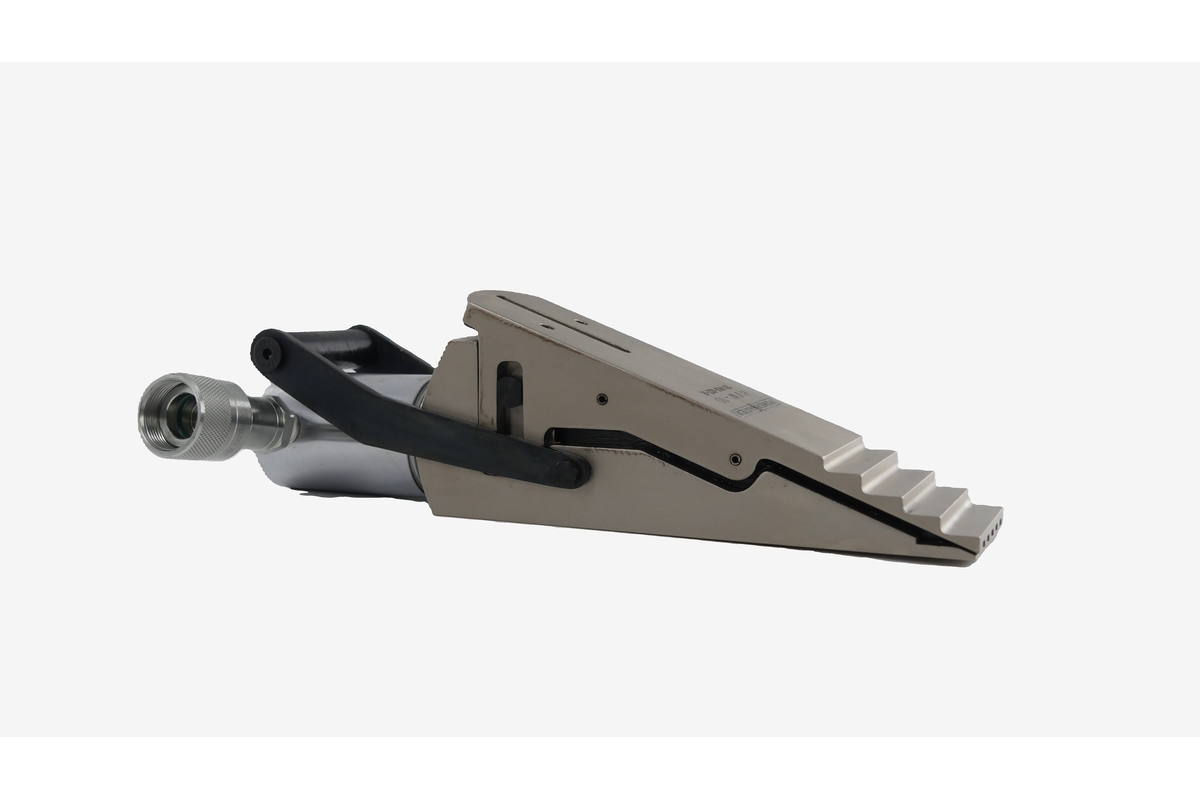

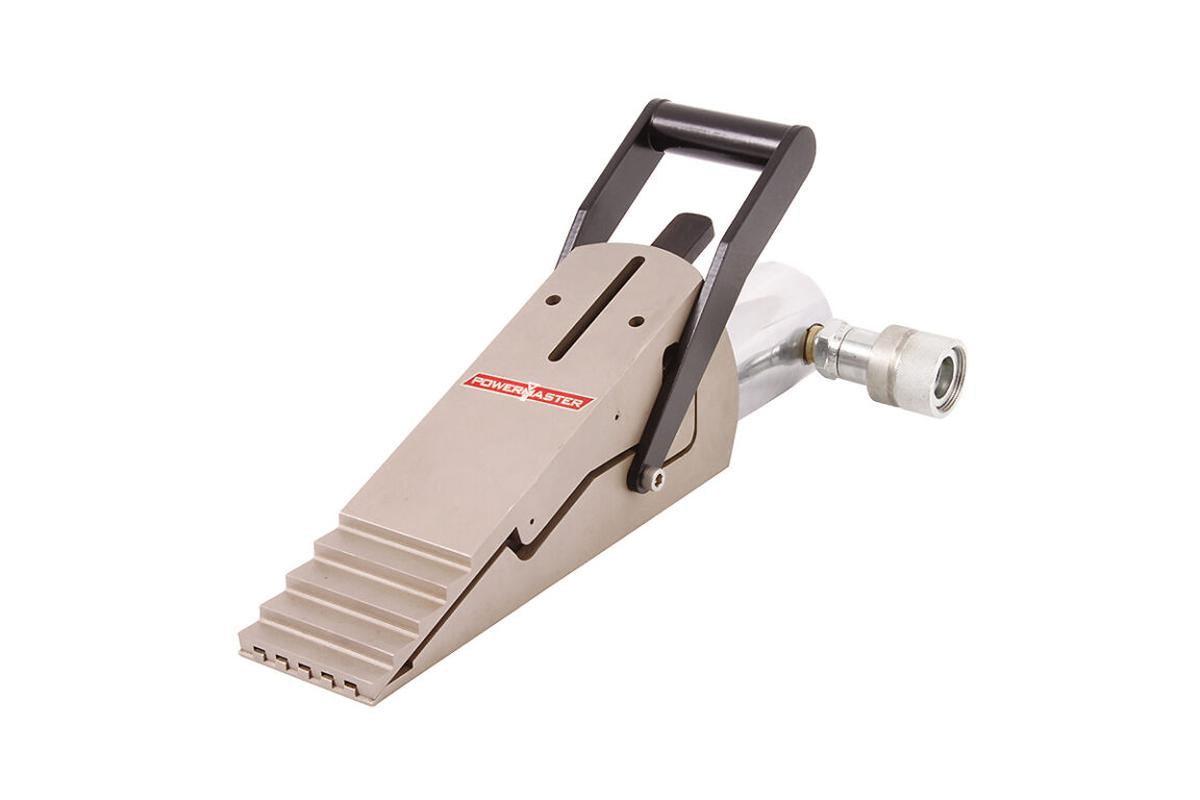

Hydraulic Lifting Wedge 16 tons (160 kN) by hyTool

The hyTool 16-ton hydraulic lifting wedge is a powerful precision tool for demanding lifting, spreading, and positioning tasks in industry and service. With a maximum spreading force of 160 kN (16 tons), the lifting wedge is ideal for maintenance, assembly, and disassembly applications where high forces are required in confined spaces.

Thanks to a minimal access gap of only 9 mm, the lifting wedge can also be inserted into very narrow gaps. The multi-stage design allows a stroke of up to 19 mm per stage, while using the fourth stage achieves a total height of 50 mm. This ensures maximum flexibility for a wide range of applications.

Operation is at a maximum working pressure of 700 bar and is designed for daily professional use. The integrated automatic spring return ensures safe and efficient retraction of the wedge after use, accelerating work processes and simplifying operation.

The 16-ton hydraulic lifting wedge is the optimal solution for users who need a compact, robust, and powerful tool for controlled lifting and spreading.

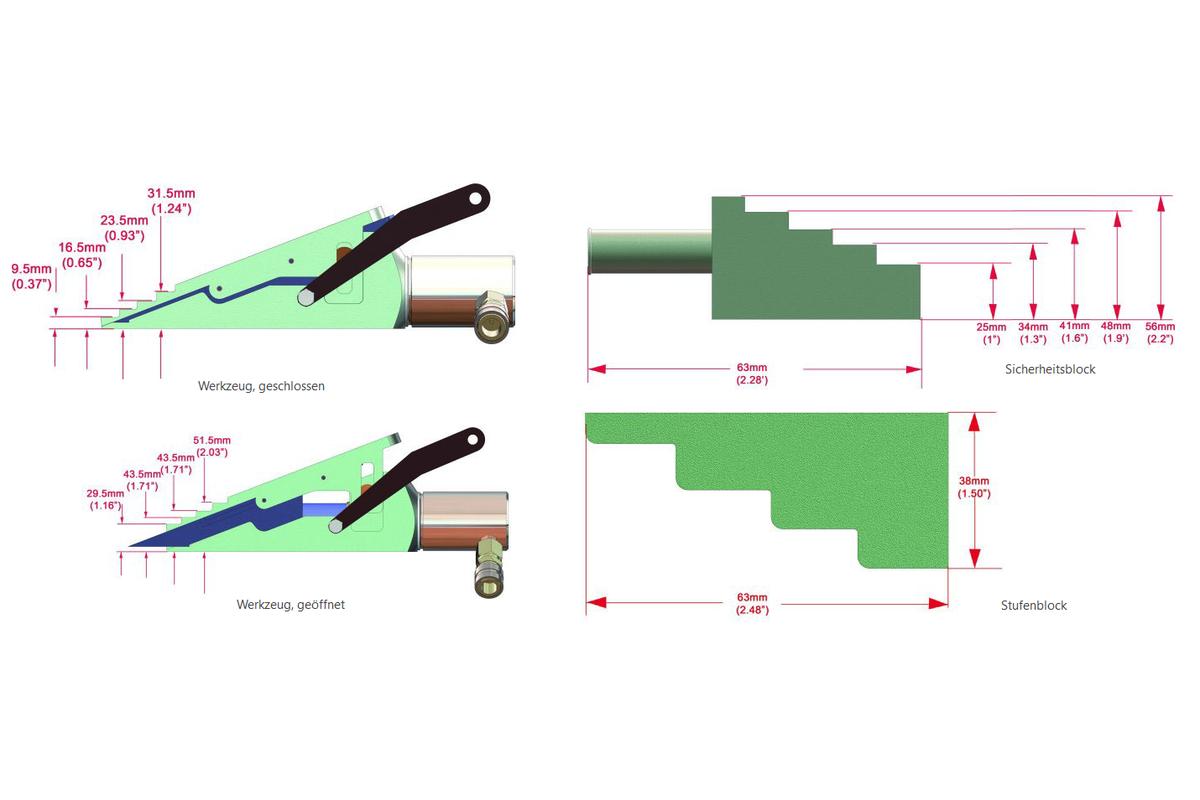

Technical Data

• Spreading Force: 160 kN / 16 tons
• Operating Pressure max.: 700 bar
• Access Gap: 9 mm
• Stroke: max. 19 mm (per stage)
• Total Height (4th stage): 50 mm
• Return: automatic (spring return)

Equipment and Accessories:

HVW-10 Solo:

• HVW-10 Lifting Wedge 16t

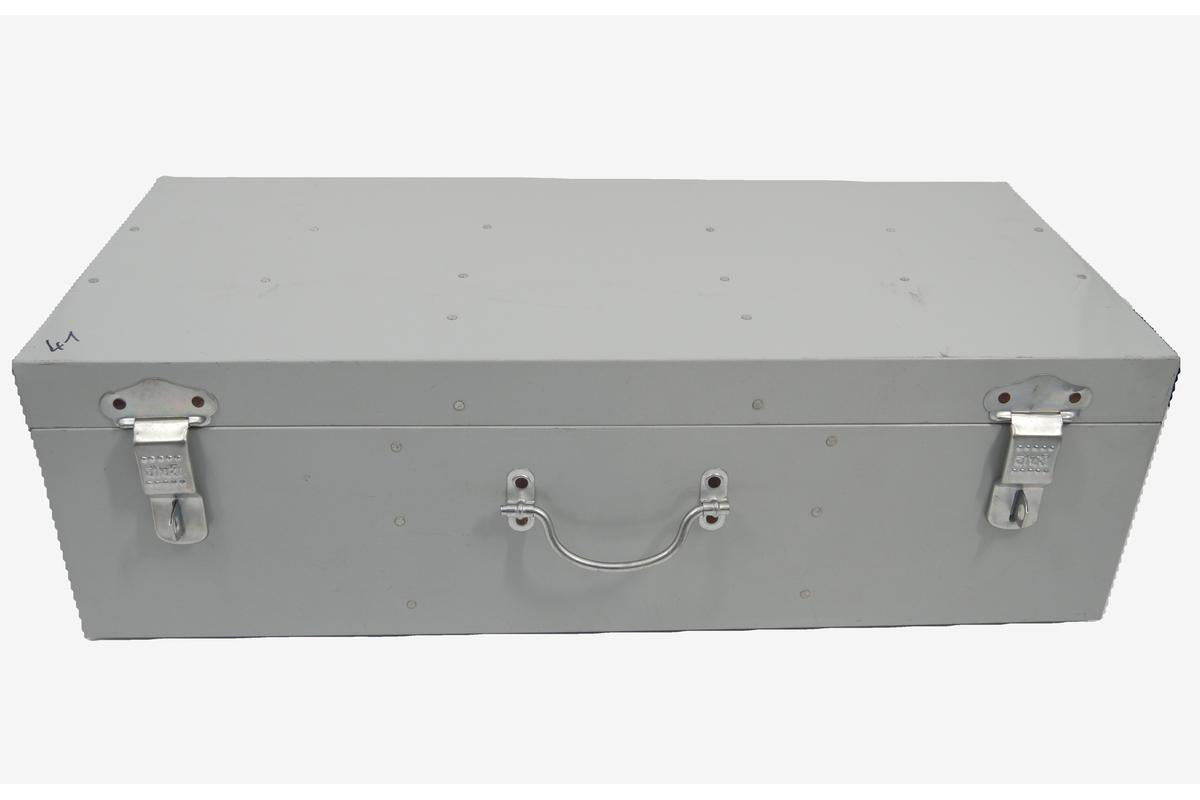

• Case

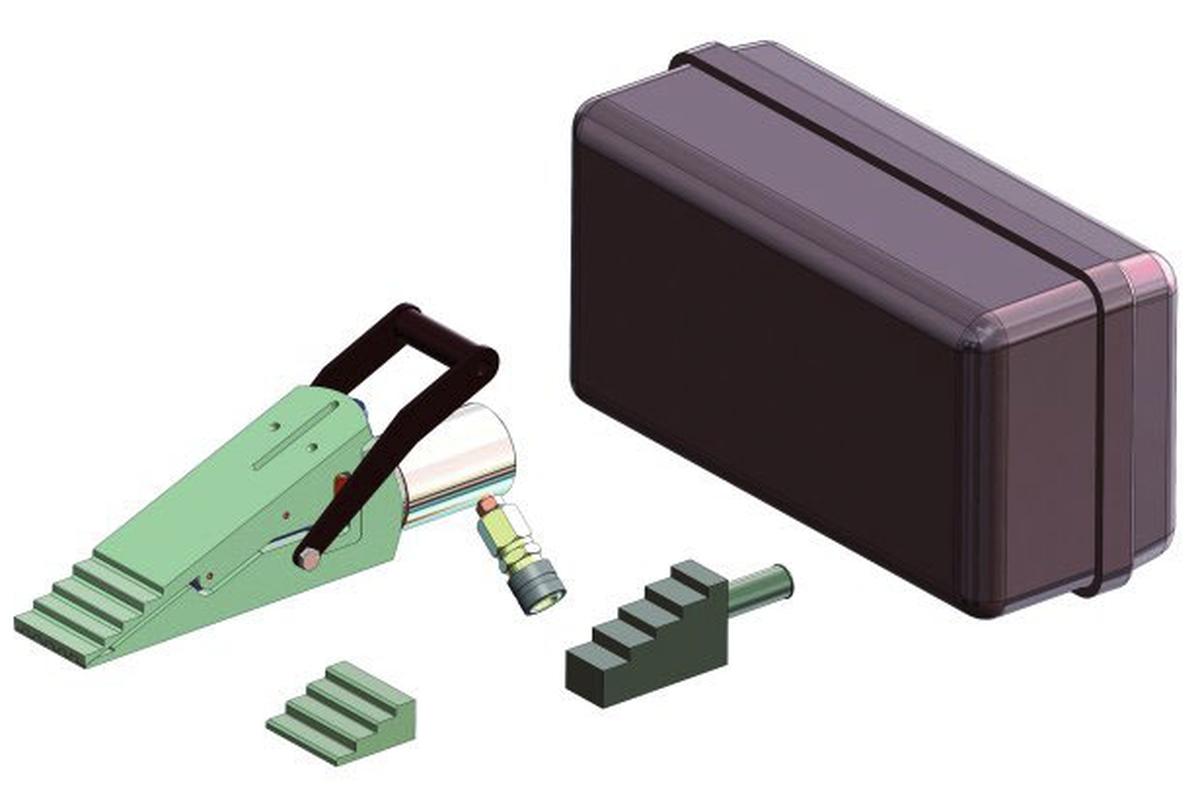

HVW-10 Mini Kit:

• HVW-10 Lifting Wedge 16t

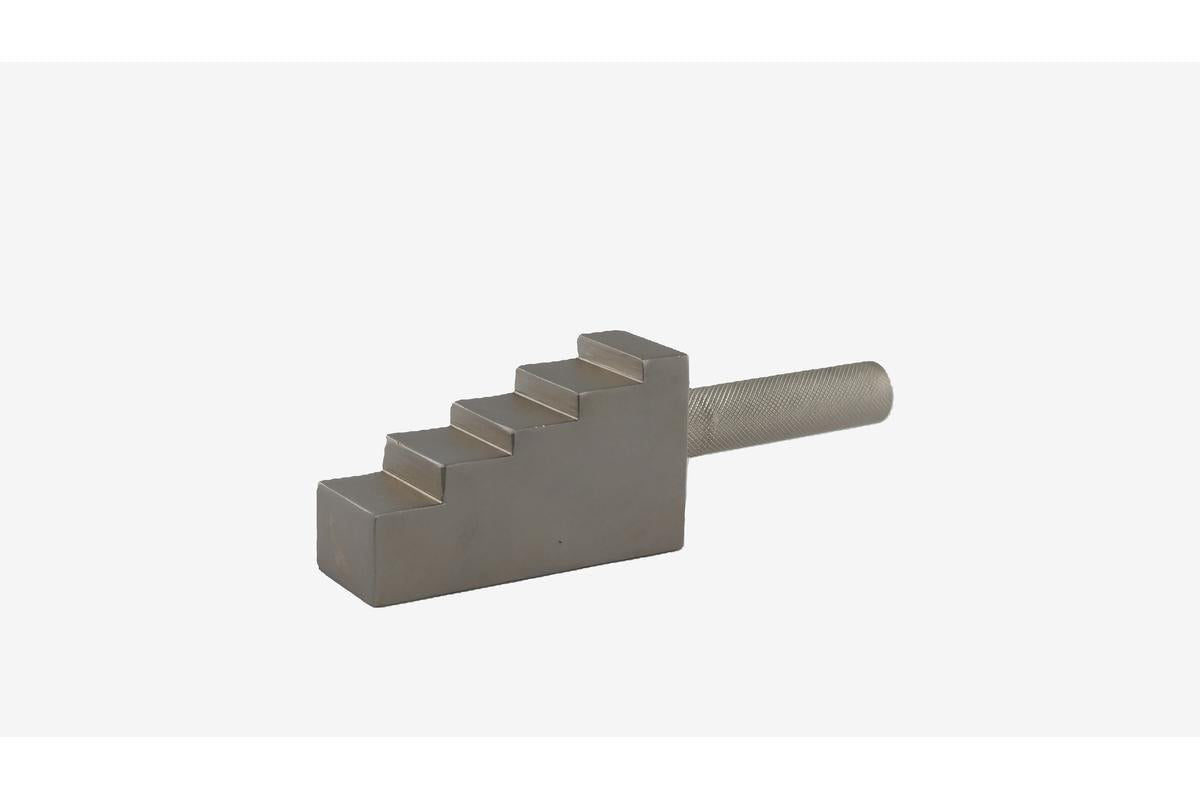

• Safety block
• Step block
• Case

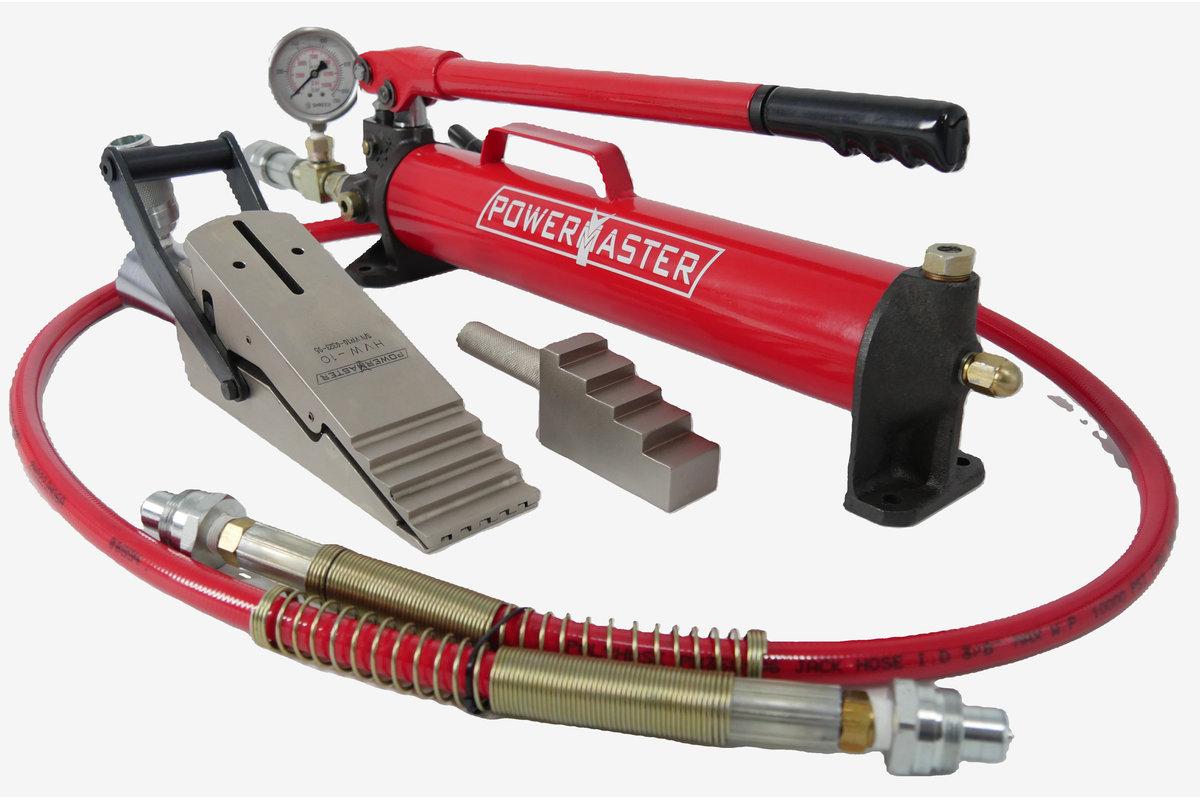

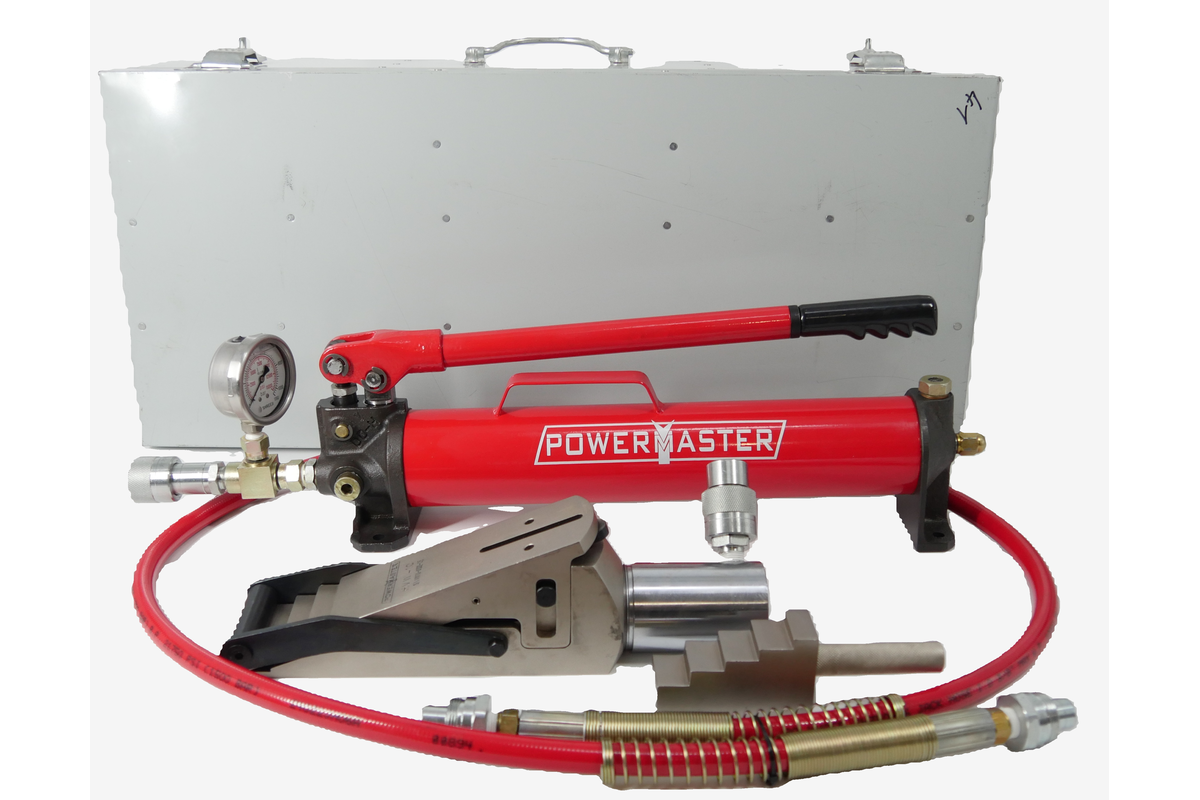

HVW-10 Maxi Kit:

• HVW-10 Lifting Wedge 16t
• Hand pump 700bar
• Hydraulic hose (3m, 700bar)
• Safety block
• Step block
• Case
